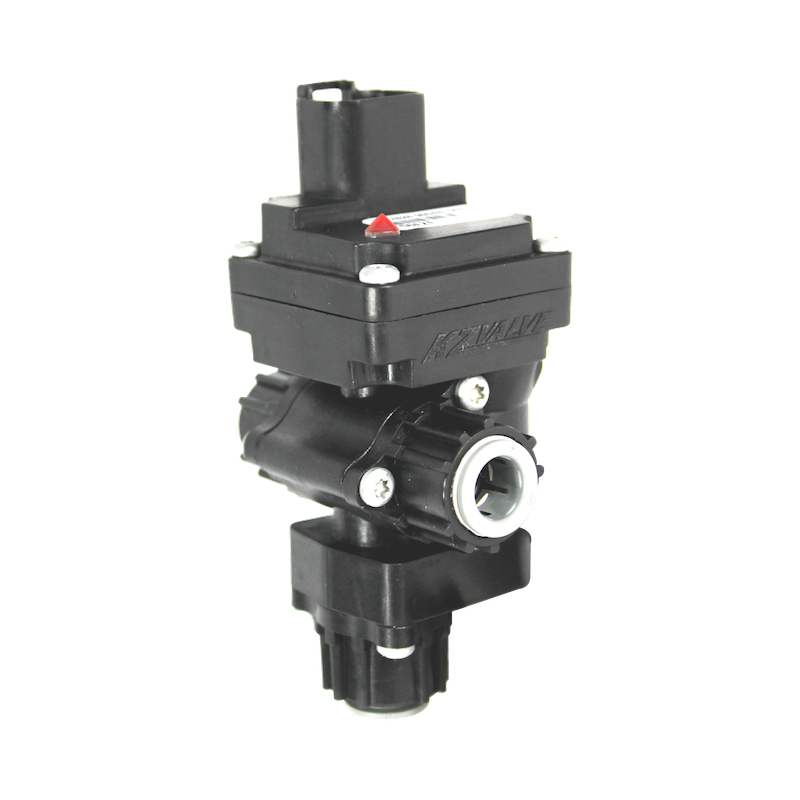

3-Way Ball Valve

Key Features
  • Waterproof
  • Low power consumption
  • Compact design
  • LED open/close indication

3-Way Ball Valve

View Catalog View Portuguese Catalog
  • Designed with extreme precision in mind
  • Instantaneous On/Off control with a standard port ball valve for unparalleled reliability and peace of mind
  • 1⁄4" and ⅜" standard port motorized ball valves
  • Lid Options: Deutsch receptacle or M12 connectors
Inlet/Outlets:
  • 1⁄4" ZIPValve 1⁄4" and ⅜" push-to-connect, or 1⁄4" MPT fittings
  • ⅜" ZIPValve 1⁄2"push-to-connect and/or QD fork connection

  • Valve body: Nylon
  • Ball: 316 stainless steel
  • Stem: 316 stainless steel
  • Valve seat: PTFE
  • Stem seal: Viton™
  • Compact design weighing only 4 ounces, which allows for more options when mounting
  • Valves are made for Actuation with a KZValve Waterproof EH8 Series Actuator, providing longer valve and actuator life
  • Robust, quarter-turn electric ball valves are highly reliable compared to solenoid and plunger valves
Available in two control options:
  •  Simple 12/24 volt on/off actuation Deutsch receptacle - 12VDC only M12 lid connectors - 12VDC or 24VDC
  • Operating as an individually addressed valve on a LINbus system (M12 only)
