EH2 SERIES

EH2 SERIES | Mid-size Motorized Valve Actuator
EH2 SERIES | Mid-size Motorized Valve Actuator
Key Features
  • Waterproof: Rated NEMA 6P
  • Ignition safe: Rated NEMA 7D
  • Round cable strain relief
  • Dual cable entrances
  • Actuate 3⁄4" to 3" valves
  • Mid-size design

EH2 SERIES

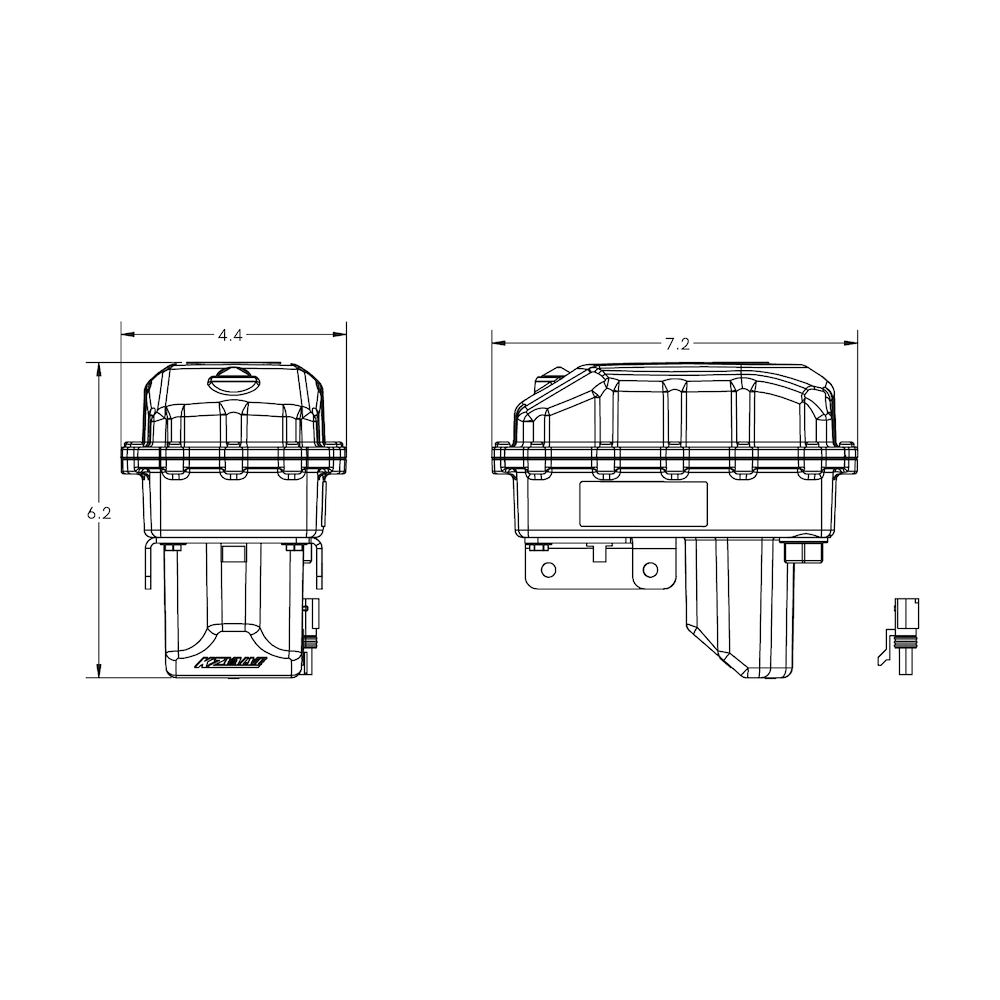

View Catalog View Portuguese Catalog Download STP Files & Line Drawings
  • Designed to perform operation essential fluid control applications in extreme conditions
  • Constructed with solid state components for increased durability and maintenance-free performance
  • UV-modified, glass-filled nylon housing is durable, impact-resistant, provides long life and lower maintenance costs
  • Waterproof actuator housing meets the IP68 rating of the ISO 60529 standard degree of protection provided by enclosures against water intrusion
  • Waterproof actuator housing is rated NEMA 6P to protect internal components from corrosion and extends actuator life
  • Actuator housing is ignition safe (Rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection
  • Mid-size design (4 lbs.) allows for use in numerous applications
  • Powerful actuator motor designed to cycle 3⁄4" to 3" valves in multiple applications
  • Available in various cycle times to meet specific needs of multiple applications
  • Actuators available in 12-Volt DC and also 24-Volt AC and/or DC
